Product Description

Designed for efficient, high output operation, these blowers feature our exclusive front and rear shaft seals and corrosion resistant motor housings for long life. Compact and easily installed on any flat surface, in-line blowers provide higher air flow, lower amp draw, and quieter operation than standard blowers.

SFIB1-235-04-Description-1

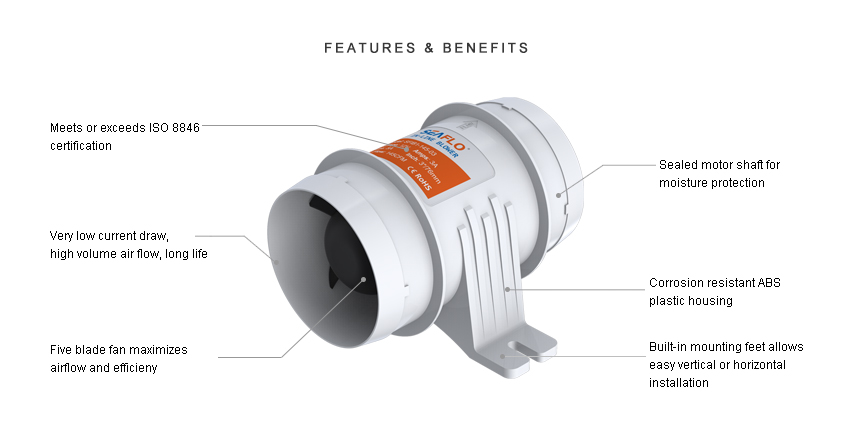

- Meets or exceeds ISO8846 certification.

- Built-in mounting feet allows easy vertical or horizontal installation.

- Very low current draw, high volum air flow, long life.

- Five blade fan maximizes airflow and efficiency .

- Sealed motor shaft for moisture protection.

- Corrosion resistant ABS plastic housing.

- Smaller size for any limited area.



SFIB1-235-04-Description-2
SFIB1-235-04-Description-3
SFIB1-235-04-Description-4

STANDARD PUMP CONFIGURATIONS

ModelVoltage

Air Flow (cfm/cmh)

Max Draw (A)

Fuse (A)

Intake Pipe DiaPacking Size(mm)
SFIB1-235-0412V235/4004.0A7.0A4"/102 mm
170*133*123
SFIB2-235-0424V235/4002.0A4.0A4"/102 mm
170*133*123

SFIB1-235-04-Description-5

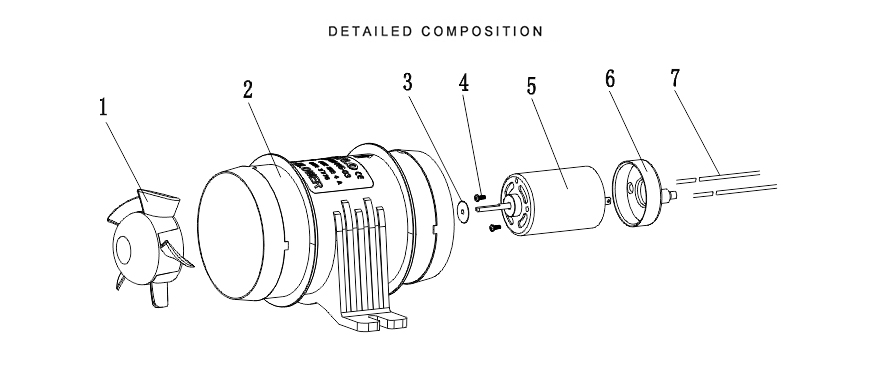

Key
Description
Quantity
1

Impeller

1
2Housing1
3

Gasket

3
4Screw1

Key
Description
Quantity
4

Motor

1
5

Motor Cover

1
6

Power Cabler

3

Unit Pump Weight

0.88 lbs (0.40 kg)

Selling Unit Size (L x W x H)

6.70" x 5.23" x 5.04"

(17.0 x 13.3 x 12.8 cm)

Selling Unit Weight

1.08 lbs (0.49 kg)

Master Carton Size (L x W x H)

20.87" x 16.46" x 16.46"
(53.0 x 41.8 x 41.8 cm)

Master Carton Qty

27 pcs

Master Carton Weight

30.64 lbs?(13.9 kg)



Specifications

Product Code
BPB235A / SFIB2-235-04
Weight
0.49kg
