Product Description

03 Series SEAFLO Flange Mount Bilge Blower Fan 320 CFM

Provides ventilation for engine compartments, galleys, bilges and heads. Designed for efficient, high output operation, these blowers feature our exclusive front and rear shaft seals and corrosion resistant motor housings, white ABS plastic construction for long life and use in the marine environment.

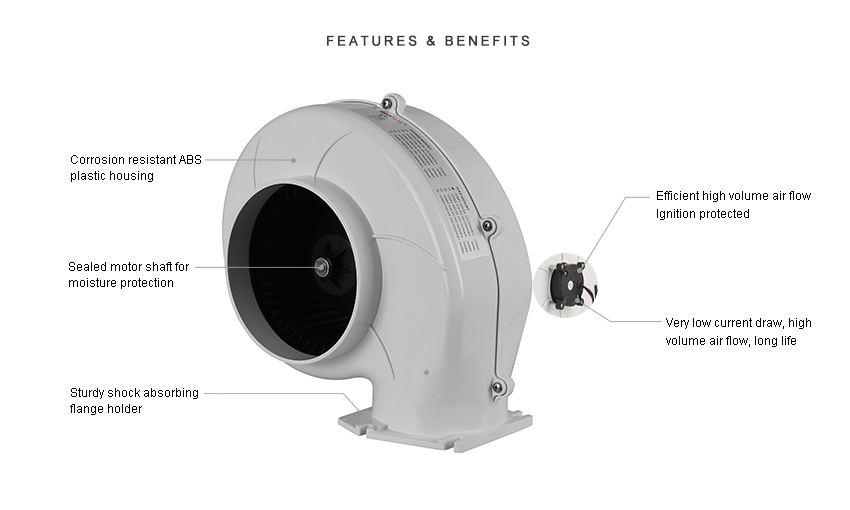

Flange-Mount-Blower-1

Flange-Mount-Blower-2

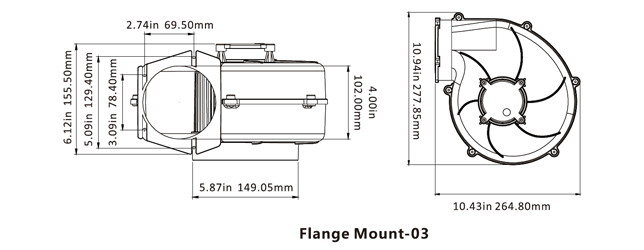

DIMENSIONS


Flange-Mount-Blower-3

STANDARD PUMP CONFIGURATIONS
ModelVoltageAir FlowMax Draw (A)FusePacking Size(mm)N.W./G.W.
SFBB1-320-0312V320/55011.0A16.0A300*270*2802.46/2.56

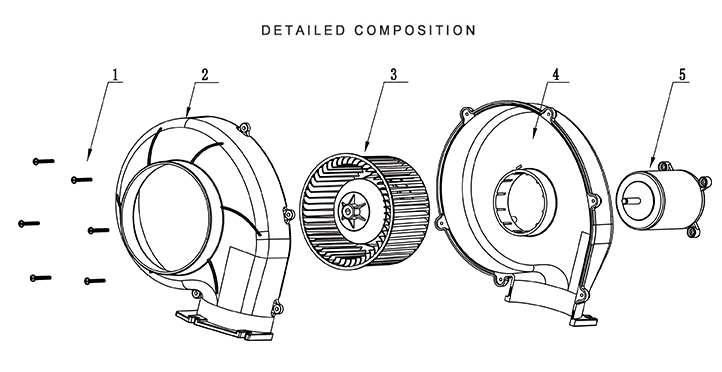

Flange-Mount-Blower-4
Key
Description
Quantity
1

Screw

6
2Blower Housing (Left)1
3Impeller1

Key
Description
Quantity
4

Blower Housing (Right)

1
5

Motor

1

Specifications

Product Code
BPB02 / SFBB1-320-03
Weight
3.52kg
